DYNAMIC EQUIPMENT
MECHANICAL & ELECTROMAGNETIC FEEDER
DYNAMIC GRIZZLY FEEDER (DGF)
The Dynamic Grizzly Feeder is a heavy duty rigid designed machine capable of bearing the impact of large rocks and heavy applications.
The solid structure is protected by replaceable wear resistant plates on the base and sides of the feeder.
Dynamic Grizzly Feeders can be utilized in:
- stationary
- portable and
- mobile track crushing units.
Size range offered:
- from 750mm x 2500mm
- up to a large 2100mm x 6000mm version for the heaviest of applications
Features include:
- stress relieved body
- heavy duty self-aligning spherical double row bearings
- adjustable stroke
- optional variable voltage and frequency drive.
Custom options:
- The grizzly sections can be supplied in single, double and triple step designs with field adjustable bar spacing.
- Feeder sizing is available upon request, for will-fit applications.
DYNAMIC PAN FEEDER (DPF)
The Dynamic range of vibrating Pan Feeders are packed with features that make it reliable, robust and easily adjustable to suit a variety of tough applications in industries like aggregate, mining, cement and steel.
Dynamic Pan Feeders provide greater efficiency with a longer service life reduces overall operating costs.
Dynamic Pan Feeder include a heavy duty troughing frame with replaceable wear resistant liners.
Feeder capacity and features:
- adjustable by counterweight settings,
- enhanced vibrator design with greater eccentric weight,
- improved vibration control and increased bearing life.
The feeders can be used in a hanging position or supported with coil springs and base plates suitable for all applications.

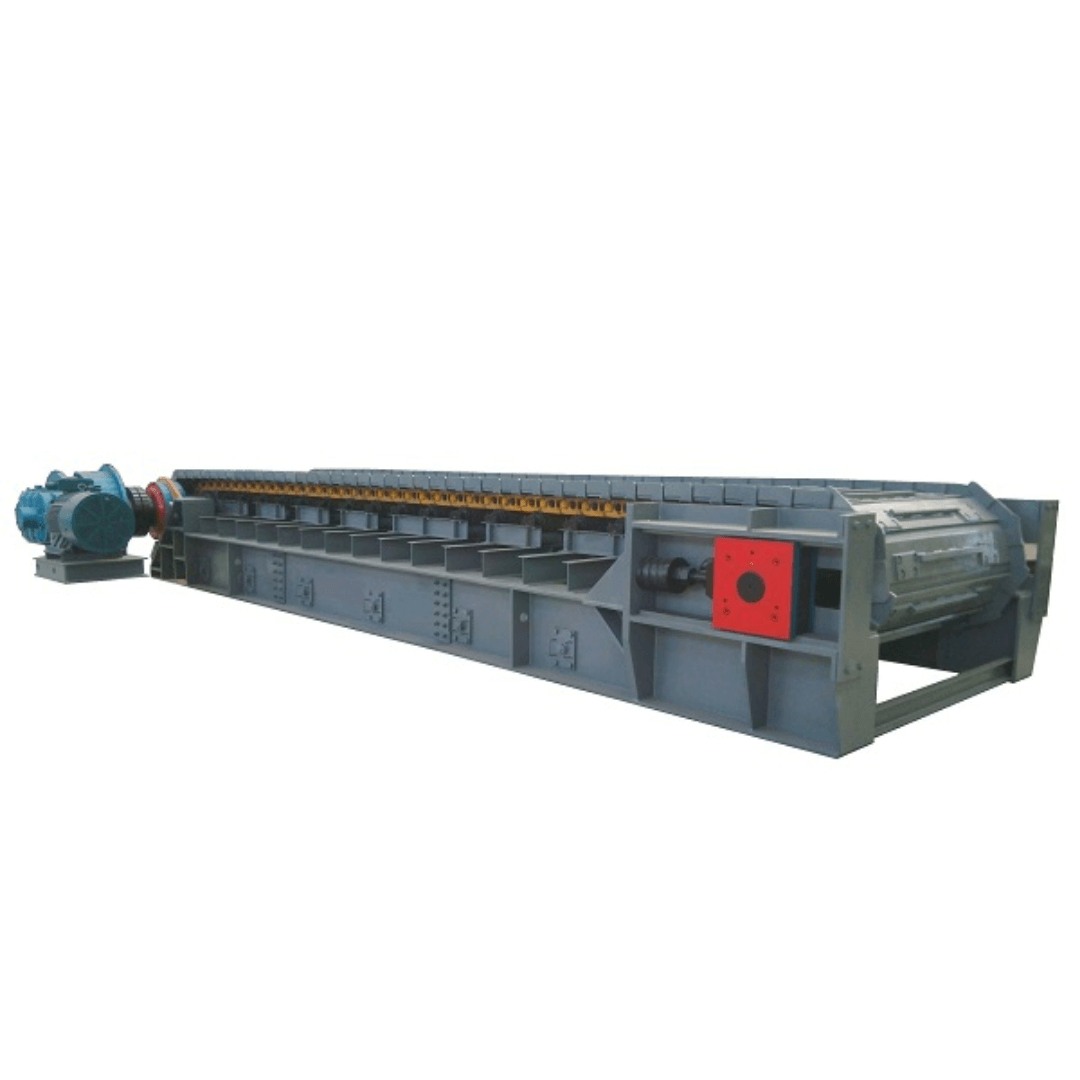

DYNAMIC APRON FEEDER (DAF)
The Dynamic Equipment Apron Feeder is a heavy duty construction feeder constructed of high quality track chain assemblies, replaceable fabricated steel pans and a planetary gear drive reducer with electric drive motor.
- variable frequency drive
- hydraulic assisted adjustment
- auto grease lube system
- dribble conveyor belt
Dynamic Apron Feeders come in a wide variety of standard widths and lengths to suit most applications.
Custom options:
- Custom sizing for will-fit replacement of existing units is available upon request.
- Supplied as a bare unit or as a hopper and feeder structure.

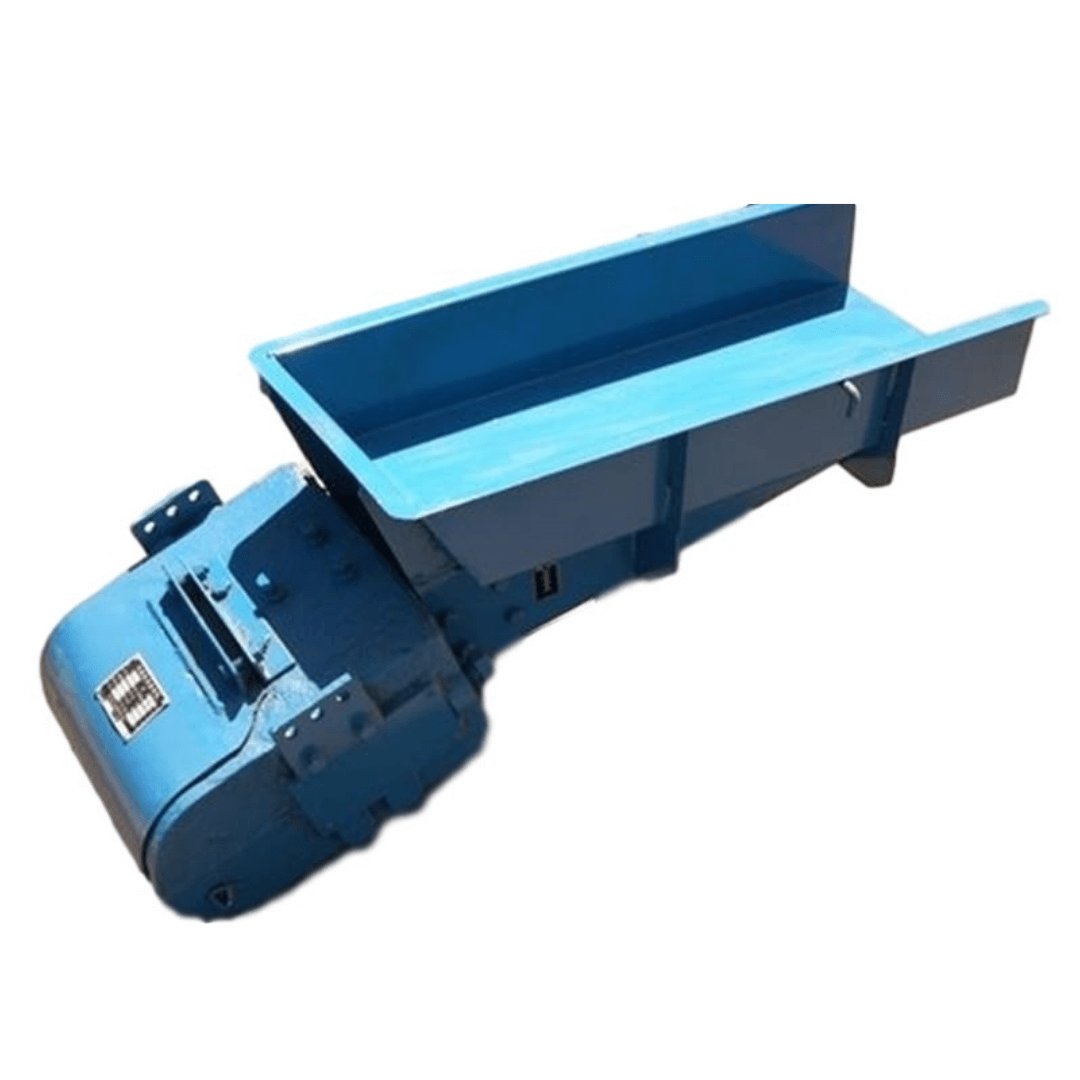

DYNAMIC ELECTROMAGNETIC PAN FEEDER (DEPF)
Dynamic Electromagnetic Pan Feeder is a popular choice for applications requiring efficient, low maintenance feeding of bulk materials with a wide range of densities.
Custom options:
- wide variety of styles
- wide variety of sizes
- easily adaptable to most sites and production lines
These low maintenance feeders have a reliable track record of performing well in the harshest conditions including mining, aggregates, cement and metals.
